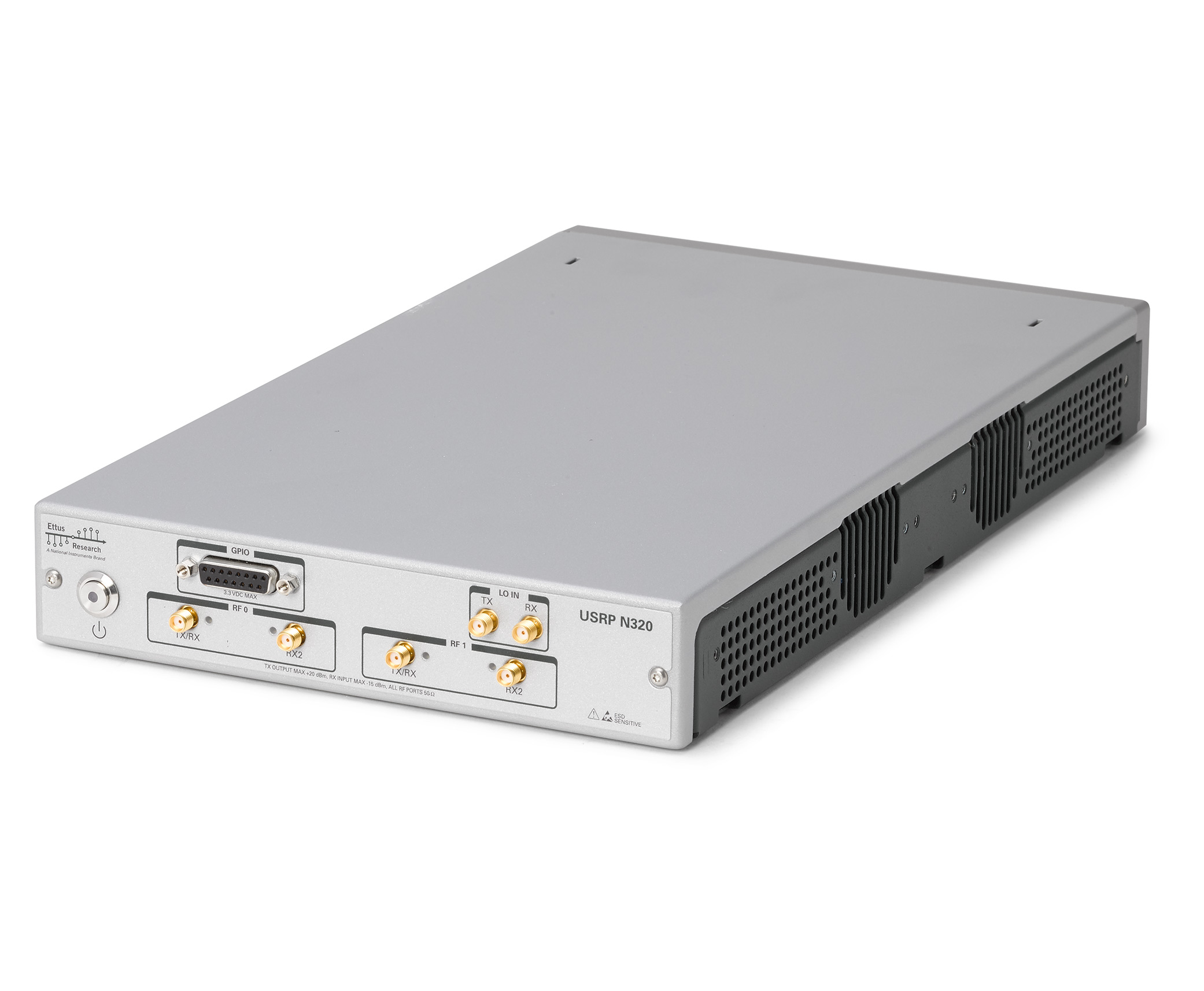

USRP N320
$20,536.00 USD
The standard variant of this product is not available in certain locations. Due to product compliance restrictions on Trusted Platform Modules, only the non-TPM variant of this USRP will be available in the People’s Republic of China and Hong Kong. Furthermore, this USRP with TPM will not be available in France, Israel or Russia until the USRP is registered in those countries. Please contact [email protected] if you would like more information.
USRP N320 (2 TX/RX CHANNELS, 200 MHZ BW)
The USRP N320 is a networked software defined radio that provides reliability and fault-tolerance for deployment in large-scale and distributed wireless systems. This device simplifies control and management of a network of radios by introducing the unique capability to remotely perform tasks such as updating software, rebooting, factory resetting, self-testing, host PC/ARM debugging and monitoring system health. The USRP N320 is an all-in-one device that includes the Zynq-7100 SoC baseband processor, two SFP+ ports, a QSFP+ port, a built-in GPSDO module, and various other peripheral and synchronization features.
-
Overview
-
Overview
The USRP N320 is a networked software defined radio that provides reliability and fault-tolerance for deployment in large scale and distributed wireless systems. This is a high performance SDR that uses a unique RF design by Ettus Research to provide 2 RX and 2 TX channels in a half-wide RU form factor. Each channel provides up to 200 MHz of instantaneous bandwidth, and covers an extended frequency range from 3 MHz to 6 GHz. The baseband processor uses the Xilinx Zynq-7100 SoC to deliver a large user programmable FPGA for real-time, low latency processing and a dual-core ARM CPU for stand-alone operation. Support for 1 GbE, 10 GbE, and Aurora interfaces over two SFP+ ports and 1 QSFP+ port enables high throughput IQ streaming to a host PC or FPGA coprocessor.
A flexible synchronization architecture with support for 10 MHz clock reference, PPS time reference, external TX and RX LO input, and GPSDO enables implementation of phase coherent MIMO testbeds. With the ability to import both TX and RX LOs for any supported frequency above 450 MHz, the USRP N320 provides a path to building large, phase coherent MIMO testbeds for a variety of advanced wireless research topics.
The USRP N320 leverages recent software developments in UHD to simplify control and management of multiple devices over the network with the unique capability to remotely administrate tasks such as debugging, updating software, rebooting, resetting to factory state, and monitoring system health.
Trusted Platform Module (TPM)
The USRP N320 includes a Trusted Platform Module to enable security features such as file encryption. Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N320 is available in two variants:
- Standard variant with TPM (PN 786503-01)
- Non-TPM variant (PN 786918-01)
Only the non-TPM variant of the USRP N320 will be available in the People’s Republic of China and Hong Kong. USRP N320 with TPM will not be available in France, Israel or Russia until the N320 is registered in those countries. Please contact [email protected] if you would like more information.
-
Features
-
Features
- High channel density
- Reliable and fault-tolerant deployment
- Remote management capability
- Stand-alone (embedded) or host-based (network streaming) operation
- Fully integrated and assembled (the USRP N320 does not support swappable daughtercards)
- 3 MHz to 6 GHz extended frequency range
- Up to 200 MHz of instantaneous bandwidth per channel
- 2 RX, 2 TX in half-wide RU form factor[1]
- RX, TX filter bank
- 14 bit ADC, 16 bit DAC
- Master clock rates: 200, 245.76, and 250 MS/s
- Xilinx Zynq-7100 SoC
- Dual-core ARM Cortex-A9 800 MHz CPU
- One QSFP+ port
- Two SFP+ ports (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
- RJ45 (1 GbE) [1]
- Clock reference
- PPS time reference
- External RX, TX LO input ports
- Built-in GPSDO
- 1 Type A USB host port
- 1 micro-USB port (serial console, JTAG)
- Trusted Platform Module v1.2 [2]
- Watchdog timer
- OpenEmbedded Linux
- USRP Hardware Driver™ (UHD) open-source software API version 3.14.0 or later
- RF Network on Chip (RFNoC™) FPGA development framework
- Xilinx Vivado 2017.4 Design Suite (license not included)
- GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio
[1] The RJ45 port is used for remote management of the device and does not support IQ streaming.
[2] Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N320 is available in two variants:
- Standard variant with TPM (PN 786503-01)
- Non-TPM variant (PN 786918-01)
Customers in the following regions should select the non-TPM option (PN 786918-01) listed above: People’s Republic of China, Hong Kong, Russia, France, and Israel.
-
Block Diagram
-
Block Diagram

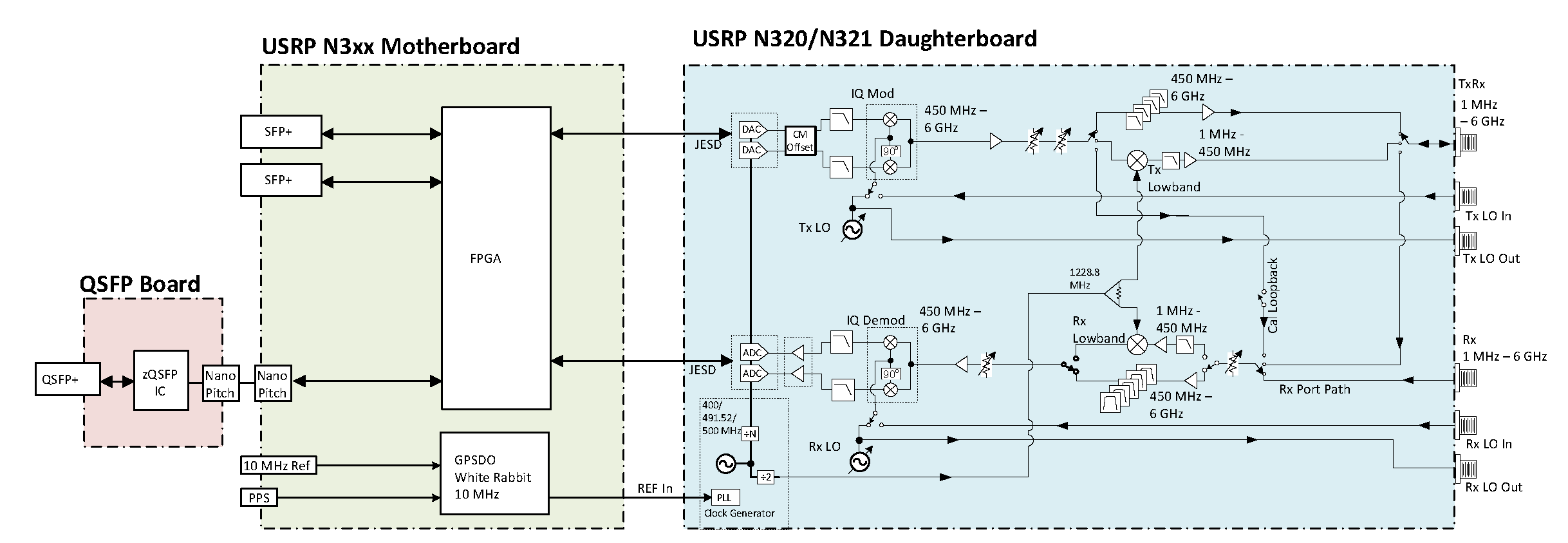

USRP N320/N321 Block Diagram
Click on image to enlarge
-
Additional Resources
-
Additional Resources
- USRP N320 Getting Started Guide
- USRP N320 Hardware Resources
- Schematics
- Building and Installing UHD and GNU Radio Application Note
- Verifying USRP Operation Application Note
- RFNoC Development Application Note
- Getting Started With UHD and C Application Note
- Using Ethernet-Based Synchronization Application Note
- USRP Support from MathWorks Communications Toolbox
- Using MathWorks Wireless Testbench with USRP
Kit Contents
- USRP N320
- RJ45 Ethernet Cable
- SFP+ to RJ45 Adapter
- Micro-USB cable
- Imaged microSD Card
- Power Supply
Recommended Accessories
- 10 Gigabit Ethernet Card for Desktops
- 10 Gigabit Ethernet Cable with SFP+ termination (1 m)
- Octoclock CDA-2990
- GPIO Expansion Kit
- 3V Active GPS Antenna
Related Products
Overview
The USRP N320 is a networked software defined radio that provides reliability and fault-tolerance for deployment in large scale and distributed wireless systems. This is a high performance SDR that uses a unique RF design by Ettus Research to provide 2 RX and 2 TX channels in a half-wide RU form factor. Each channel provides up to 200 MHz of instantaneous bandwidth, and covers an extended frequency range from 3 MHz to 6 GHz. The baseband processor uses the Xilinx Zynq-7100 SoC to deliver a large user programmable FPGA for real-time, low latency processing and a dual-core ARM CPU for stand-alone operation. Support for 1 GbE, 10 GbE, and Aurora interfaces over two SFP+ ports and 1 QSFP+ port enables high throughput IQ streaming to a host PC or FPGA coprocessor.
A flexible synchronization architecture with support for 10 MHz clock reference, PPS time reference, external TX and RX LO input, and GPSDO enables implementation of phase coherent MIMO testbeds. With the ability to import both TX and RX LOs for any supported frequency above 450 MHz, the USRP N320 provides a path to building large, phase coherent MIMO testbeds for a variety of advanced wireless research topics.
The USRP N320 leverages recent software developments in UHD to simplify control and management of multiple devices over the network with the unique capability to remotely administrate tasks such as debugging, updating software, rebooting, resetting to factory state, and monitoring system health.
Trusted Platform Module (TPM)
The USRP N320 includes a Trusted Platform Module to enable security features such as file encryption. Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N320 is available in two variants:
- Standard variant with TPM (PN 786503-01)
- Non-TPM variant (PN 786918-01)
Only the non-TPM variant of the USRP N320 will be available in the People’s Republic of China and Hong Kong. USRP N320 with TPM will not be available in France, Israel or Russia until the N320 is registered in those countries. Please contact [email protected] if you would like more information.
Features
- High channel density
- Reliable and fault-tolerant deployment
- Remote management capability
- Stand-alone (embedded) or host-based (network streaming) operation
- Fully integrated and assembled (the USRP N320 does not support swappable daughtercards)
- 3 MHz to 6 GHz extended frequency range
- Up to 200 MHz of instantaneous bandwidth per channel
- 2 RX, 2 TX in half-wide RU form factor[1]
- RX, TX filter bank
- 14 bit ADC, 16 bit DAC
- Master clock rates: 200, 245.76, and 250 MS/s
- Xilinx Zynq-7100 SoC
- Dual-core ARM Cortex-A9 800 MHz CPU
- One QSFP+ port
- Two SFP+ ports (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
- RJ45 (1 GbE) [1]
- Clock reference
- PPS time reference
- External RX, TX LO input ports
- Built-in GPSDO
- 1 Type A USB host port
- 1 micro-USB port (serial console, JTAG)
- Trusted Platform Module v1.2 [2]
- Watchdog timer
- OpenEmbedded Linux
- USRP Hardware Driver™ (UHD) open-source software API version 3.14.0 or later
- RF Network on Chip (RFNoC™) FPGA development framework
- Xilinx Vivado 2017.4 Design Suite (license not included)
- GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio
[1] The RJ45 port is used for remote management of the device and does not support IQ streaming.
[2] Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N320 is available in two variants:
- Standard variant with TPM (PN 786503-01)
- Non-TPM variant (PN 786918-01)
Customers in the following regions should select the non-TPM option (PN 786918-01) listed above: People’s Republic of China, Hong Kong, Russia, France, and Israel.
Block Diagram
USRP N320/N321 Block Diagram
Click on image to enlarge
Additional Resources
- USRP N320 Getting Started Guide
- USRP N320 Hardware Resources
- Schematics
- Building and Installing UHD and GNU Radio Application Note
- Verifying USRP Operation Application Note
- RFNoC Development Application Note
- Getting Started With UHD and C Application Note
- Using Ethernet-Based Synchronization Application Note
- USRP Support from MathWorks Communications Toolbox
- Using MathWorks Wireless Testbench with USRP
Kit Contents
- USRP N320
- RJ45 Ethernet Cable
- SFP+ to RJ45 Adapter
- Micro-USB cable
- Imaged microSD Card
- Power Supply
Recommended Accessories
- 10 Gigabit Ethernet Card for Desktops
- 10 Gigabit Ethernet Cable with SFP+ termination (1 m)
- Octoclock CDA-2990
- GPIO Expansion Kit
- 3V Active GPS Antenna
Related Products
